sargkuehlvitrine tumolo

sargkuehlvitrine tumolo 29500























































































zurück Leichenkühlung Übersicht

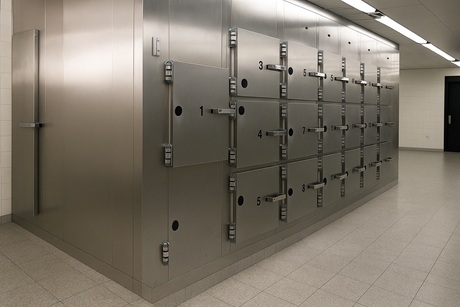

Viessmann Leichen Schrankfachanlage Viessmann ohne Begehungstüre 24 Luken für normale Verstorbene 70x50 cm in weiss mit 2 Aggregaten Decke CT 2000 + Regale in Edelstahl Front und 2 Seiten Edelstahl € 41.900,--   + mwst 2017 2,40 x 7,20 x 2,41 m hoch  Zelle 80 mm isoliert

2 mortuary refrigerators Viessmann 2400x 7200 x2410 mm 80 mm isolated  without committing door hatches 24 for normal Deceased 70x50 cm in white with 2 units Ceiling CT 2000 + shelves in stainless steel  an outside 3 sides alo stainless steel a € 43.000,--  for 2017

48 body trays a € 600,-- = 30800,--

1 lifting trolley each € 3.990,--

2 stronger Coolings Units CT 3000 each € 1.290,--

2 better isolation 100 mm each € 2.590,--

1 Commiting Door in one side+1 m more space in the back for cleaning 3300x 7200 x2410 mm  each € 2.150,--

mortuary refrigerator viessmann mortuary refrigerator viessmann

alternativ

MORTUARY REFRIGERATOR   with the present we follow your request, we thank you for, sending you our present best proposal for the following required item :

Option A

n. 2 mortuary refrigerators 24 bodies each, 6 tiers 4 bodies each,

individual doors  proposed in the following versions :

- Zinc plated  each € 43.500,-- + mwst 2015/ stainless steel each € 49.500,-- + mwst 2015

- N. 1 with one cooling unit

Option B

n. 2 mortuary refrigerators 24 bodies each, 8 tiers 4 bodies each,

individual doors  proposed in the following versions :

- Zinc plated each € 45.500,-- + mwst 2015 / stainless steel each € 51.500,-- + mwst 2015

- N. 1 with one  cooling unit

Option C

n. 2 mortuary refrigerators 24 bodies each, n. 4 tiers 6 bodies each,

4 big doors  proposed in the following versions :

- Zinc plated each € 32.900,-- + mwst 2015 / stainless steel each € 38.900,-- + mwst 2015

- N. 1 with one  cooling unit

 n. 2 cooling units in stand by

Accessory

2nd cooling unit working in stand-by with automatic switch over device each € 5.200,-- + mwst



Our terms are the following :  Delivery period : 5 / 6 weeks about, ex our company.  Prices : in €uro, ex-works.

Option A

2 mortuary refrigerators 24 bodies each, 6 tiers 4 bodies each, individual doors,

proposed in the following versions :  - Zinc plated / stainless steel - N. 1 cooling unit / n. 2 cooling units in stand by



Mortuary refrigerator 24 Mortuary refrigerator 24  in 4 Line

dimensions

Length mm. 5.580

Depth mm. 2.260

Height mm. 2.680

These dimensions do not include the cooling unit, that can be :

Either monoblock on top Or monoblock lateral  Or remote  Accordingly to site conditions

Technical data

Working temperature 0°C

Temperature range - 5 °C / + 5°C

Voltage V380 / 3 / 50

Refrigerant R404 A

Option B

n. 2 mortuary refrigerators 24 bodies each, 8 tiers 3 bodies each, individual doors,

proposed in the following versions :

- Zinc plated / stainless steel

- N. 1 cooling unit / n. 2 cooling units in stand by

refrigerator mortuarirefrigerator mortuarirefrigerator mortuarirefrigerator mortuari Mortuary refrigerator 24  in 3 Line

dimensions

Length mm. 7.420

Depth mm. 2.260

Height mm. 2.280

These dimensions do not include the cooling unit, that can be :

Either monoblock on top Or monoblock lateral Or remote Accordingly to site conditions

Technical data

Working temperature 0°C

Temperature range - 5 °C / + 5°C

Voltage V380 / 3 / 50

Refrigerant R404 A

Option

Option c

n. 2 mortuary refrigerators 24 bodies each, 4 tiers 6 bodies each, 4 big doors,

proposed in the following versions :

- Zinc plated / stainless steel

- N. 1 cooling unit / n. 2 cooling units in stand by



body 4 big doors

dimensions

Length mm. 3.740

Depth mm. 2.260

Height mm. 2.680

These dimensions do not include the cooling unit, that can be :

Either monoblock on top

Or monoblock lateral

Or remote

Accordingly to site conditions

Technical data

Working temperature 0°C

Temperature range - 5 °C / + 5°C

Voltage V380 / 3 / 50

Refrigerant R404 A

STRUCTURAL CHARATERISTICS   BOX STRUCTURE

The box structure is made of modular panels that are formed by an insulating diaphramm in stiff polyurethane foam that is injected between the two metal plates.

Panel thickness : 80mm

WALLS, CEILING AND DOORS

- STANDARD FINISHING: plastic-galvanized steel plate with white, atoxic and stiff PVC film with a thickness of 120 μ that self-extinguishes and complies with the hygienic regulations. - STAINLESS STEEL FINISHING: internal and external stainless steel AISI 304.

FLOOR

The floor is made of a reinforced polyurethane foam with pre-compressed wooden shaving plates, thickness 10 mm.

- STANDARD FINISHING: plastic-galvanized steel plate with grey, anti-slip, atoxic and stiff PVC film with a thickness of 200 μ that self-extinguishes and complies with the hygienic norm.

- STAINLESS STEEL FINISHING: in stainless steel AISI 304.

THERMIC INSULATION

The thermic insulation is given by stiff self-extinguishing polyurethane foam according to the Norms ASTM D 1692, density 40 Kg/m3, absent CFC content. Very good thermic, chemical and dimensional stability.

BODY STRETCHERS AND INTERNAL STRUCTURE leichenmuldensystem

The stretchers are completely stainless steel. A basin border allows to collect the liquids. They are equipped with nylon wheels to move them on the cold room rails and with handles to easy introduction, extraction and transport. Inside the cold room there is a tubular stainless steel structure welcoming the stretchers and allowing their exit with an at least 50% overhanging of their length: this for possible acknowledgement operations of the body or for autopsies. The stretcher can be always extracted completely from the cold room.

REFRIGERATING PLANT

The refrigerating group is made of first quality materials and of the accessories of the best sector trademarks. It is available in monoblock on in the remote version and it includes: the condensing unit, the evaporating unit and the electronic and control panel.

- BODYWORK: in painted steel plate and structured with removable panels for an easy maintenance.

- COMPRESSOR: it’s gas-proof and cooled by the suctioned gas; it is equipped with an integral protection engine with electronically adjusted thermistors. Ecological gas. The gas spreading is carried out using a capillary tube or the thermostatic valve. The nominal powers are indicated in the proper illustration charts.

BATTERIES, ELECTRIC FANS AND DEFROSTING

The thermic exchange batteries (evaporator and condenser) are made of copper tubes; the aluminium chassis and finning have a wide exchange surface. The electric fans for evaporation are hermetic.

The defrosting with the hot gas system and the electric resistances prevent the condensate loss. 6

CONTROL PANEL

It is completely automatic and programmed to control all the plant functions. An electronic gear-case allows the adjust of the tools according to the different needs (thermostat, operation set with min/max values, choice of the defrosting type, start delay of evaporator fans, stop time after the defrosting for the discharger drainage, temperature alarm, feeler breaking, internal lighting, protections on the number of interventions on the thermostat).

STANDARD EQUIPMENT

- lighting inside the cold room through a micro-switch located on the doors with following plant turning off;

- digital reading electronic control panel;

- alarm for temperature changes or functioning problems;

- water discharging drain placed on the cold room floor.

ACCESSORY (SEPARATELY QUOTED)

-SECOND COOLING UNIT WORKING IN STND BY

Refrigeration system with n. 2 complete systems with duplicate condensing units and evaporators (fan coil). Each of these systems are enough to cool the cabinet independently. So, if one fails for any reason, the other one takes over automatically in order to maintain the required temperature. Its timer will alternate the two refrigeration system running over for 3.5 and using 3.5 days, so enhancing the life of the system. 7



Accessory :

Hydraulic lifting trolley for insertion and extraction

from the cold room Code –CEAC028 € 3.990,-- + mwst 2015

body lift

Length mm. 2200

width mm. 800

Max height mm. 1800

Min height mm. 400

Load kg. 200

The hydraulic lifting trolley is used both for the transport of bodies on stretcher and together with the cold rooms for the insertion and the extraction of stretchers by one operator. It is stainless steel with a double scissors lifting frame in order to reach the 3rd upper place on the cold room.

The oil-pressure lifting system is assured by a hydraulic pump that is activated by foot; the lowering can have an adjustable speed. It is equipped with a flow regulator in order to prevent the load to low itself quickly so damaging the operator, after that it has been lifted and it must be lowered.

The supporting plane is used to place the stretcher that will be inserted in the proper cold room.

It is equipped with two steering wheels and two free ones.
